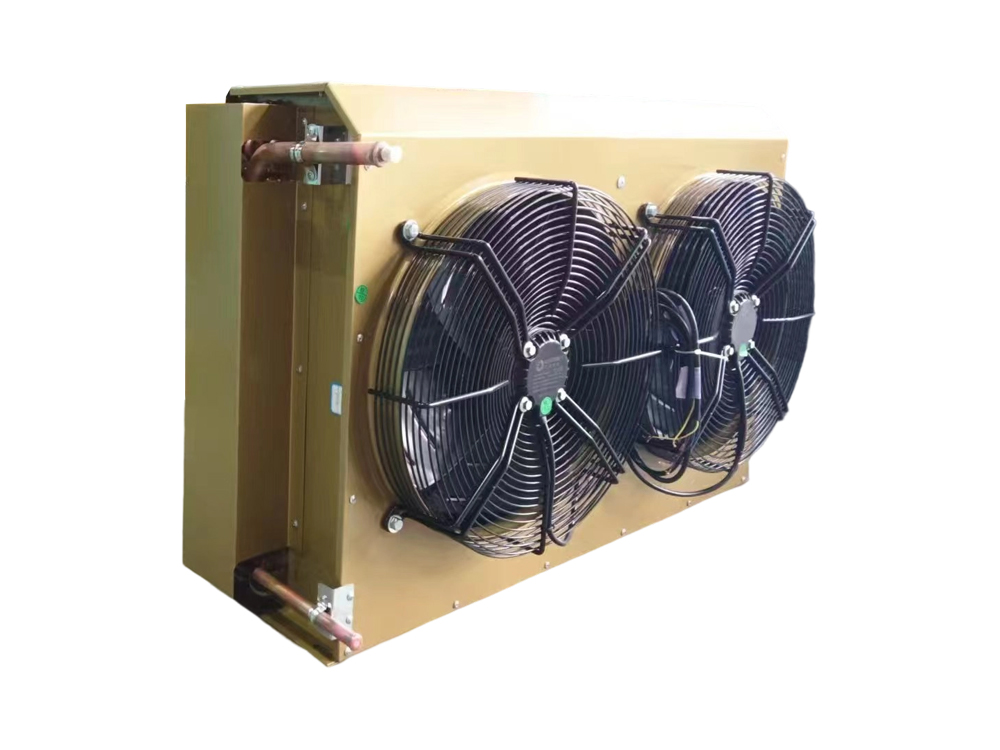

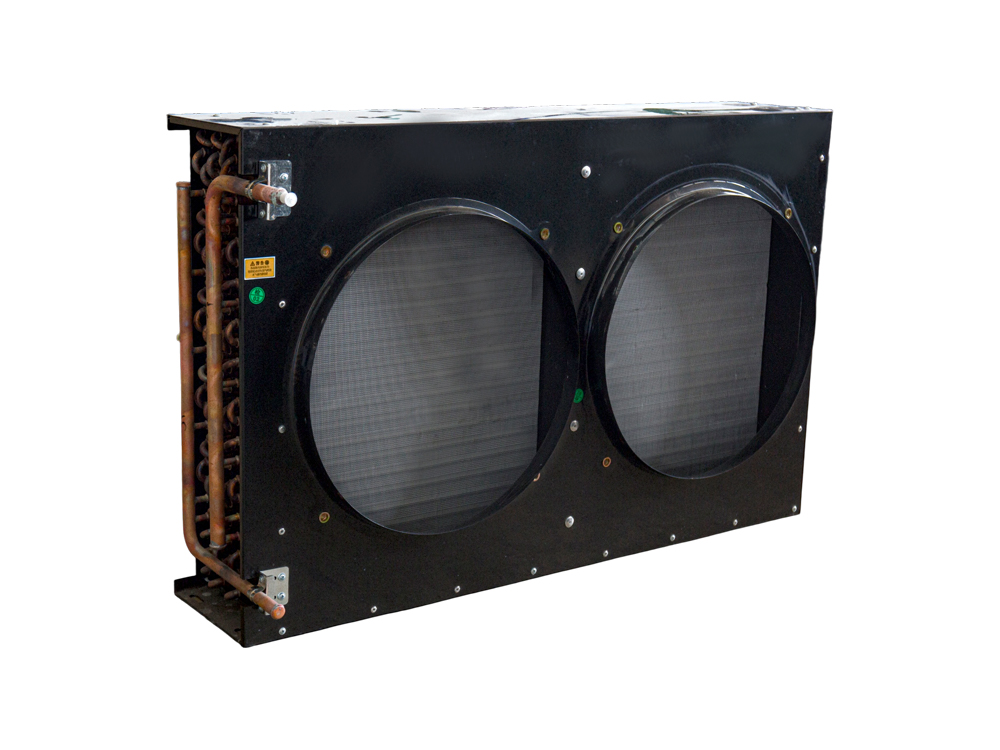

Double air plate H-type condenser

The double-plate H-shaped condenser features a parallel flow structure, with multiple sets of flat tubes and manifolds forming the heat exchange unit. Dual-sided reinforced fins enhance airflow. This structure increases the effective heat exchange area per unit volume, improving heat exchange efficiency between the medium and air. The equipment is typically constructed of aluminum alloy, balancing thermal conductivity and structural strength. The fan system utilizes an external rotor motor-driven axial fan, achieving low noise operation and high air volume output, making it suitable for medium and high-temperature cooling conditions. The overall compact structure facilitates system integration and maintenance.

Inquiry
  • Double air plate H-type condenser
  • Double air plate H-type condenser
  • Double air plate H-type condenser
  • Double air plate H-type condenser
  • Double air plate H-type condenser
  • Double air plate H-type condenser
  • Double air plate H-type condenser
  • Double air plate H-type condenser
Description Related Products Inquiry
Serial
number		  Model Heat exchange
(KW)		 Ring number Heat exchange
area		 Fan electric machine Intake pipe
Liquid tube
Number Fan Power Air volume
17 FNH2-26 7.3 4×8 26 2 Φ350 2×129 2×2290 Φ19 Φ16
18 FNH2-29 9.2 4×9 28 2 Φ350 2×129 2×2290 Φ19 Φ16
19 FNH2-34 1.1 4×10 33.5 2 Φ400 2×180 2×3400 Φ19 Φ16
20 FNH2-41 13.5 4×12 41 2 Φ400 2×180 2×3400 Φ19 Φ16
21 FNH2-45 14.8 4×13 45 2 Φ400 2×180 2×3400 Φ19 Φ16
22 FNH2-49 16.2 4×14 49 2 Φ400 2×180 2×3400 Φ19 Φ16
23 FNH2-55 18.2 4×14 55 2 Φ400 2×180 2×3400 Φ19 Φ16
24 FNH2-41 13.5 5×10 41 2 Φ400 2×180 2×3400 Φ19 Φ16
25 FNH2-50 16.5 5×12 50 2 Φ400 2×180 2×3400 Φ19 Φ16
26 FNH2-62 20.5 6×12 62 2 Φ400 2×180 2×3400 Φ22 Φ19
27 FNH2-65 21.4 4×16 65 2 Φ450 2×250 2×4800 Φ22 Φ19
28 FNH2-70 23.1 5×14 70 2 Φ450 2×250 2×4800 Φ22 Φ19
29 FNH2-80 26.4 5×16 80 2 Φ450 2×250 2×4800 Φ25 Φ22
30 FNH2-100 33.1 5×16 100 2 Φ500 2×414 2×6500 Φ25 Φ22
31 FNH2-120 39.6 6×16 120 2 Φ550 2×600 2×8300 Φ25 Φ22

Serial number Model Heat exchange
(KW)		   Ring number Dimensions Fan electric machine Installation dimensions
L W H Number Fan A B
17 FNH2-26 7.3 4×8 850 180 430 2 Φ350 825 110
18 FNH2-29 9.2 4×9 900 180 480 2 Φ350 825 110
19 FNH2-34 11.1 4×10 980 180 530 2 Φ400 950 110
20 FNH2-41 13.5 4×12 980 180 630 2 Φ400 950 110
21 FNH2-45 14.8 4×13 980 180 680 2 Φ400 950 110
22 FNH2-49 16.2 4×14 980 180 730 2 Φ400 950 110
23 FNH2-55 18.2 4×14 1080 180 730 2 Φ400 1050 110
24 FNH2-41 13.5 5×10 980 200 530 2 Φ400 950 130
25 FNH2-50 16.5 5×12 980 200 630 2 Φ400 950 130
26 FNH2-62 20.5 6×12 980 220 630 2 Φ400 950 150
27 FNH2-65 21.4 4×16 1140 200 830 2 Φ450 1110 130
28 FNH2-70 23.1 5×14 1130 210 730 2 Φ450 1100 150
29 FNH2-80 26.4 5×16 1130 230 830 2 Φ450 1100 150
30 FNH2-100 33.1 5×16 1380 230 830 2 Φ500 1350 150
31 FNH2-120 39.6 6×16 1380 230 830 2 Φ550 1350 150
