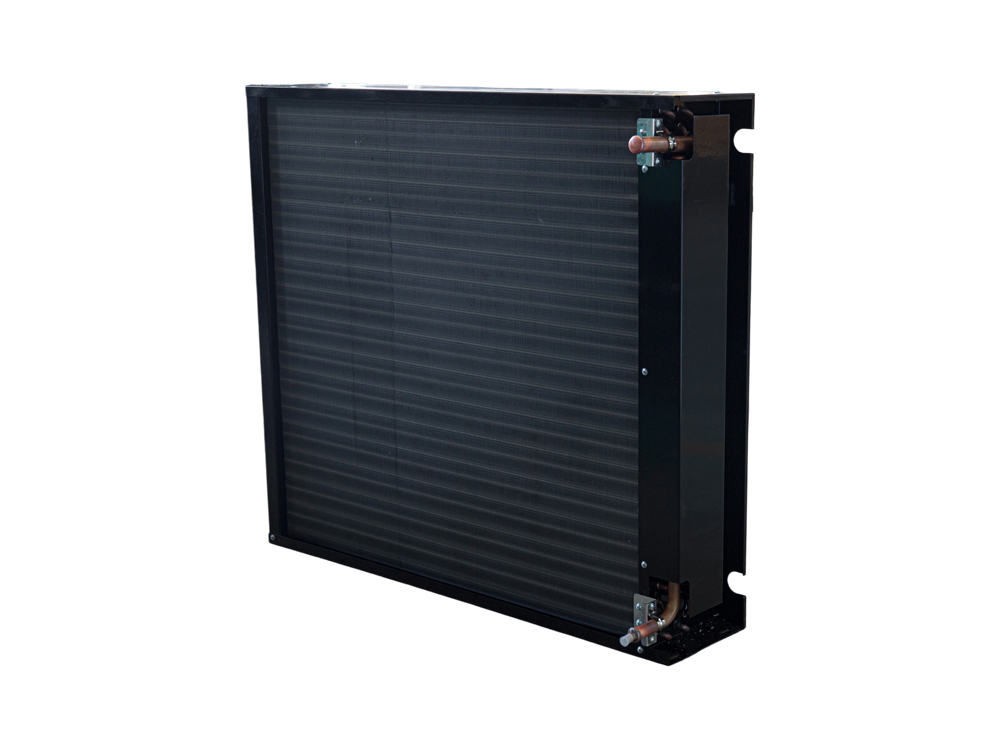

Single air plate H-type condenser

The single-air plate H-type condenser features an integrated layout of plates and fans, resulting in a compact structure and effectively improving space utilization. Its heat exchange unit is constructed from multiple sets of parallel aluminum alloy finned tubes, increasing surface area to enhance heat exchange efficiency between air and refrigerant. The fan system typically uses an external rotor motor or direct drive structure, offering variable speed adjustment to suit diverse operating conditions.

This type of condenser is compatible with a variety of refrigerants, including common media such as R22, R404, and R507. Its operating pressure range covers medium and high pressure conditions, and the anti-corrosion treatment of the tube wall makes it suitable for use in hot and humid environments. Some models are equipped with a protective mesh and a vibration-damping base to mitigate external environmental impact and reduce operating vibration.

The equipment can be configured with either a single or dual fan, depending on actual needs. Some models support modular parallel installation for easy system capacity expansion. It is suitable for commercial refrigeration, cold storage, and industrial cooling applications.
