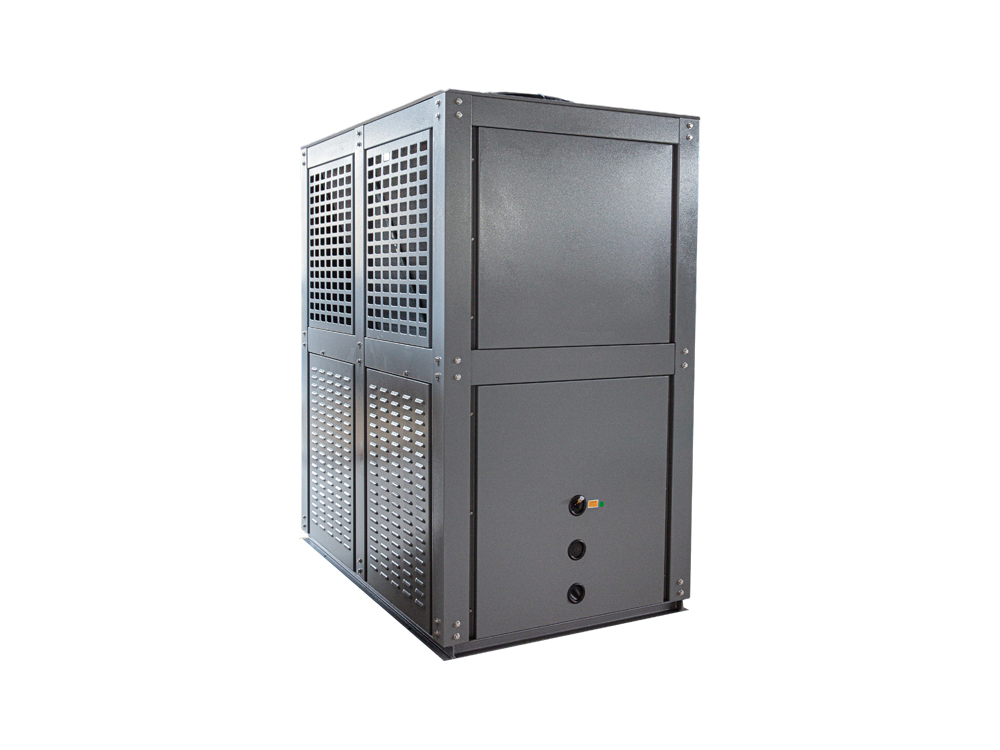

FNV double-layer box condenser (two motors)

The FNV series double-chamber condenser (two motors) features a double-chamber design with an independent outer casing and internal air duct, resulting in high structural strength and low operating vibration. Equipped with two independently controlled motors, the unit supports multi-stage speed regulation, allowing air volume to be adjusted based on actual load demand, helping to control energy consumption.

The staggered arrangement of the condensing coils increases the heat exchange area and improves the heat exchange efficiency between air and refrigerant. The coil surface is treated with an anti-corrosion treatment, making it suitable for a variety of environmental conditions. The fan blades are dynamically balanced for smooth operation and low noise.

This condenser is suitable for medium-sized commercial and industrial refrigeration applications and can be used with a variety of refrigeration systems to provide stable condensing performance.

Inquiry
  • FNV double-layer box condenser (two motors)
  • FNV double-layer box condenser (two motors)
  • FNV double-layer box condenser (two motors)
  • FNV double-layer box condenser (two motors)
  • FNV double-layer box condenser (two motors)
  • FNV double-layer box condenser (two motors)
Description Related Products Inquiry
Serial
number		  Model Heat exchange
Kw		 Heat exchange area
m²		 Length
mm		 width
mm		 Height
mm		 Ring number External rotor motor Take over size
Number Diameter Power(W) Air volume Intake pipe Liquid tube
l FNV-100 33.1 100 1450 870 1550 3×14 2 Φ450 2×250 2×4800 Φ25 Φ19
2 FNV-120 39.6 120 1520 870 1560 4×12 2 Φ500 2×414 2×6500 Φ25 Φ19
3 FNV-130 42.9 130 1620 870 1560 4×12 2 Φ500 2×414 2×6500 Φ25 Φ19
4 FNV-150 49.5 150 1620 870 1650 4×14 2 Φ500 2×414 2×6500 Φ25 Φ19
5 FNV-160 52.8 160 1700 870 1650 4×14 2 Φ500 2×414 2×6500 Φ25 Φ19
6 FNV-180 59.4 180 1880 870 1650 4×14 2 Φ550 2×600 2×8300 Φ25 Φ19
