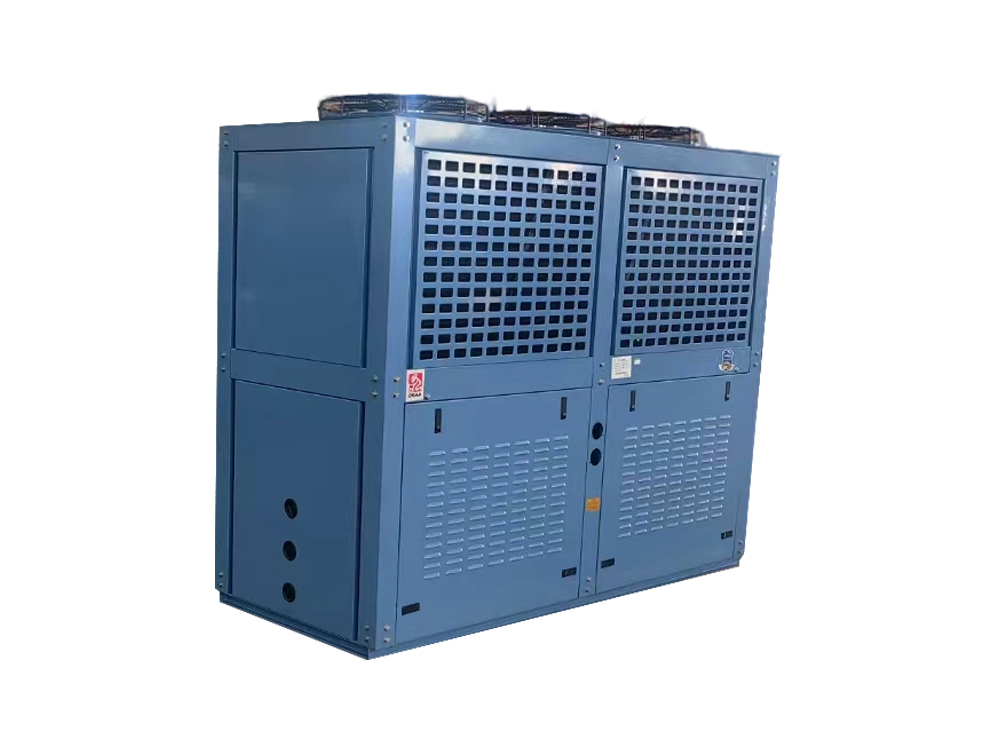

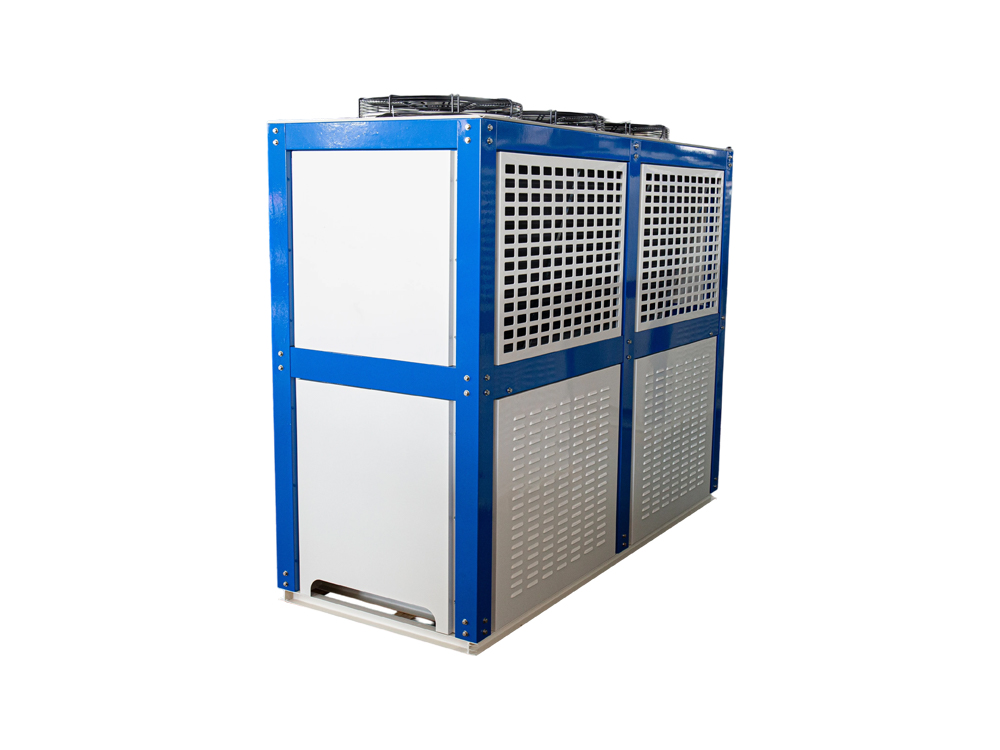

FNV double-layer box condenser (three motors)

The FNV series double-layer box-type condenser (three motors) features a double-layer air inlet box structure and is equipped with three independently driven axial fans, enabling multi-stage speed control. The outer shell is typically constructed of galvanized iron, spray-coated steel, or stainless steel. Internally, it houses a copper-tube, aluminum-fin heat exchanger, compatible with refrigerants such as ammonia and Freon. The unit offers three adjustable air volume settings: high, medium, and low. The fan start/stop and speed can be automatically or manually adjusted based on ambient temperature and system load. Suitable for medium to large refrigeration systems, it maintains stable condensing pressure and heat exchange efficiency even in high ambient temperatures or with limited ventilation.

Inquiry
  • FNV double-layer box condenser (three motors)
  • FNV double-layer box condenser (three motors)
  • FNV double-layer box condenser (three motors)
  • FNV double-layer box condenser (three motors)
  • FNV double-layer box condenser (three motors)
  • FNV double-layer box condenser (three motors)
  • FNV double-layer box condenser (three motors)
  • FNV double-layer box condenser (three motors)
 Serial
number
 Model Heat exchange
Kw
Heat exchange area
Length
mm
width
mm
Height
mm
Ring number External rotor motor Take over size
Number Diameter Power(W) Air volume Intake pipe Liquid tube
6 FNV-180 59.4 180 1880 870 1650 4×14 2 Φ550 2×600 2×8300 Φ25 Φ19
7 FNV-200 66 200 2060 870 1750 4×14 3 Φ500 3×414 3×6500 Φ28 Φ22
8 FNV-220 72.6 220 2000 900 1850 4×16 3 Φ500 3×414 3×6500 Φ28 Φ22
9 FNV-240 79.2 240 2160 900 1850 4×16 3 Φ550 3×600 3×8300 Φ28 Φ22
10 FNV-260 85.8 260 2320 900 1850 4×16 3 Φ550 3×600 3×8300 Φ28 Φ22
11 FNV-280 92.4 280 2470 1000 1900 4×16 3 Φ600 3×780 3×9800 Φ35 Φ25
12 FNV-300 99 300 2630 1000 1900 4×16 3 Φ600 3×780 3×9800 Φ35 Φ25
13 FNV-320 105.6 320 2630 1000 1950 4×17 3 Φ600 3×780 3×9800 Φ35 Φ25
14 FNV-350 115.5 350 2750 1000 2080 4×18 3 Φ630 3×800 3×11000 Φ35 Φ25
