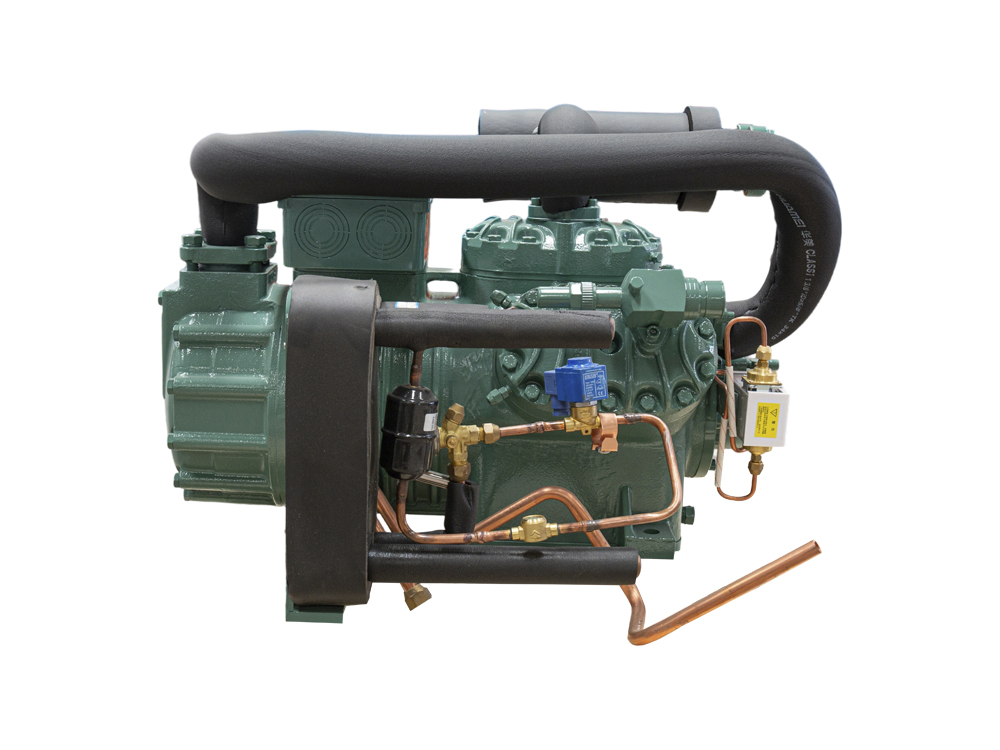

Bipolar compressor

A two-stage compressor is a positive displacement compressor that uses a two-stage compression process. Its working process is divided into two stages: the low-pressure stage draws in and initially compresses the gas, and then introduces the gas into the high-pressure stage for final compression to achieve the required exhaust pressure. This design reduces the gas temperature through intercooling, thereby reducing power consumption and improving efficiency during the compression process. Bi-stage compressors are generally suitable for medium and high-pressure applications, and their structural forms include piston and screw types. Due to the use of staged compression and intercooling mechanisms, this model helps to control the exhaust temperature and improve energy efficiency while maintaining a higher output pressure. Common application areas include industrial gas treatment, high-pressure gas supply and process flows.

Inquiry
  • Bipolar compressor
  • Bipolar compressor
  • Bipolar compressor
  • Bipolar compressor
  • Bipolar compressor
  • Bipolar compressor
Description Related Products Inquiry
Compressor
type		 Nominal motor power
HP/KW		 Displacement (50Hz)m³/h Number of
Cylinder
×Diameter
×Stroke(mm)		 Aspirator, exhaust valve take-over Oil injection volume(L) Power
supply
V/Ø/Hz		 Electrical parameter Crankcase
Heater
(220)W		 Oil
supply
method		 Weight (including freezing oil)Kg
Low
Pressure		 High
Pressure		 DL SL
Max operating current(A)  Starting
current/rotor
lockedcurrent(A
S6G-12.2 12/9.3 42.3 27 6×Φ65×55 28 1-1/8" 35  1-3/8" 3.5 380~420YY/3/50 440YY/3/60 24 69/113 120 Forced-lubrication 180
S6J-16.2 16/12.5 63.5 31.8 6×Φ65×55 28  1-1/8" 42  1-5/8" 3.5 37 81/132 209
S6H-20.2 20/15 73.6 36.9 6×Φ70×55 28  1-1/8" 42  1-5/8" 3.5 37 97/158 220
S6G-25.2 25/19 84.5 42.3 6×Φ75×55 28  1-1/8" 42  1-5/8" 3.5 45 116/193 233
S6F-30.2 30/22 101.3 50.5 6×Φ82×55 28  1-1/8" 42  1-5/8" 3.5 53 135/220 234

Compressor type Cond temp (°C) Cooling capacity Qo(W) Power consumption Pe(kW)
Evaporating temperatue(°C )
-20 -25 -30 -35 -40 -45 -50 -20 -25 -30 -35 -40 -45 -50
S4G-12.2 30 21.35 17.73 14.55 11.77 9.34 7.24 5.41 8.82 8.22 7.63 7.03 6.43 5.84 5.24
35 20.95 17.43 14.3 11.56 9.15 7.06 5.23 9.49 8.83 8.17 7.51 6.85 6.82 5.53
40 20.6 17.14 14.06 11.35 8.96 6.88 5.04 10.16 9.43 8.71 7.99 7.26 6.54 5.81
45 20.25 168.5 138.2 11.14 8.78 6.69 10.82 10.04 9.25 8.46 7.68 6.89
50 19.92 16.57 13.59 10.94 8.58 11.47 10.63 9.78 8.93 8.09
55 19.59 16.3 13.36 10.73 12.09 11.19 10.28 9.38
S6J-16.2 30 30.65 25.6 21.15 17.23 13.77 10.7 7.95 13.34 12.26 11.17 10.08 8.98 7.9 6.82
35 30.3 25.35 20.95 17.05 13.59 10.49 7.66 14.26 13.09 11.9 10.72 9.53 8.36 7.19
40 30 25.1 20.75 16.87 13.42 10.3 7.41 15.19 13.91 12.63 11.35 10.07 8.79 7.52
45 29.65 24.85 20.55 16.71 13.26 10.11 16.11 14.73 13.35 11.97 10.58 9.17
50 29.35 24.6 20.35 16.57 13.13 17.03 15.53 14.05 12.57 11.05
55 29.1 24.4 20.2 16.46 17.94 16.33 14.74 13.14
S6H-20.2 30 35.5 29.7 24.5 19.97 15.96 12.4 9.18 15.46 14.21 12.95 11.68 10.41 9.15 7.91
35 35.15 29.4 24.3 19.76 15.75 12.16 8.88 16.53 15.17 13.79 12.42 11.05 9.69 8.34
40 34.75 29.1 24.05 19.56 15.56 11.94 8.59 17.61 16.12 14.64 13.15 11.67 10.19 8.71
45 34.4 28.8 23.8 19.37 15.37 11.72 18.68 17.07 15.47 13.87 12.26 10.63
50 34.05 28.5 23.6 19.21 15.22 19.74 18 16.29 14.56 12.8
55 33.7 28.3 23.4 19.07 20.79 18.92 17.09 15.23
S6G-25.2 30 40.8 34.05 28.15 22.9 18.32 14.23 10.54 17.75 16.31 14.86 13.41 11.95 10.51 9.08
35 40.35 33.75 27.9 22.7 18.09 13.96 10.2 18.98 17.41 15.84 14.26 12.68 11.12 9.57
40 39.9 33.4 27.6 22.45 17.86 13.7 9.86 20.21 18.51 16.81 15.1 13.4 11.7 10
45 39.5 33.05 27.35 22.25 17.65 13.46 21.44 19.6 17.76 15.92 14.07 12.2
50 39.1 32.75 27.1 22.05 17.47 22.66 20.67 18.7 16.72 14.7
55 38.7 32.45 26.9 21.9 23.87 21.73 19.62 17.48
S6F-30.2 30 48.8 40.75 33.7 27.4 21.9 17.03 12.61 21.23 19.52 17.78 16.04 14.3 12.57 10.86
35 48.25 40.35 33.35 27.15 21.65 16.71 12.2 22.71 20.83 18.95 17.06 15.18 13.31 11.45
40 47.75 39.95 33 26.85 21.35 19.39 11.79 24.18 22.15 20.11 18.07 16.03 13.99 11.96
45 47.25 39.55 32.7 26.6 21.1 16.1 25.66 23.45 21.25 19.05 16.84 14.6
50 46.75 39.2 32.45 26.4 20.9 27.12 24.73 22.37 20.01 17.59
55 46.3 38.85 32.2 26.2 28.56 25.99 23.47 20.92
Compressor type Cond temp (°C) Cooling capacity Qo(W) Power consumption Pe(kW)
Evaporating temperatue(°C )
-20 -25 -30 -35 -40 -45 -50 -20 -25 -30 -35 -40 -45 -50
S4G-12.2 30 18.37 14.95 12.02 9.53 7.43 5.67 4.18 8.32 7.66 7.01 6.37 5.75 5.16 4.61
35 17.6 14.31 11.5 9.11 7.08 5.37 3.92 8.87 8.16 7.45 6.76 6.08 5.42 4.79
40 16.83 13.68 10.98 8.68 6.73 5.07 3.65 9.45 8.68 7.92 7.16 6.42 5.69 4.97
45 16.06 13.04 10.46 8.26 6.38 4.77 10.06 9.22 8.39 7.56 6.74 5.93
50 15.29 12.42 9.95 7.83 6.02 10.7 9.77 8.85 7.93 7.03
55 14.52 11.78 9.43 7.41 11.37 10.31 9.27 8.26
S6J-16.2 30 27.9 22.75 18.35 14.57 11.34 8.57 6.17 10.94 10.32 9.62 8.83 7.93 6.92 5.78
35 26.8 21.85 17.62 13.98 10.85 8.15 5.79 11.88 11.14 10.33 9.41 8.4 7.26 6.01
40 25.7 20.95 16.89 13.39 10.37 7.74 5.42 12.81 11.99 11.06 10.02 8.87 7.58 6.17
45 24.55 20.05 16.16 12.81 9.9 7.35 13.74 12.84 11.81 10.65 9.33 7.85
50 23.4 19.14 15.45 12.24 9.44 14.64 13.69 12.57 11.28 9.78
55 22.3 18.24 14.74 11.69 15.52 14.52 13.34 11.92
S6H-20.2 30 32.35 26.4 21.25 16.89 13.14 9.93 7.15 12.68 11.96 11.15 10.23 9.19 8.02 6.7
35 31.05 25.35 20.4 16.2 12.58 9.45 6.71 13.77 12.92 11.97 10.91 9.73 8.42 6.96
40 29.75 24.3 19.57 15.52 12.02 8.98 6.28 14.85 13.89 12.82 11.62 10.28 8.79 7.15
45 28.45 23.25 18.73 14.84 11.47 8.51 15.92 14.88 13.69 12.34 10.81 9.1
50 27.15 22.2 17.9 14.19 10.95 16.97 15.86 14.57 13.07 11.33
55 25.8 21.15 17.09 13.55 17.99 16.83 15.46 13.81
S6G-25.2 30 37.15 30.3 24.4 19.39 15.09 14.41 8.21 14.55 13.73 12.8 11.75 10.55 9.21 7.69
35 35.65 29.1 23.45 18.6 14.44 10.85 7.7 15.81 14.83 13.74 12.53 11.17 9.67 7.99
40 34.15 27.9 22.5 17.82 13.8 10.31 7.21 17.05 15.95 14.72 13.34 11.8 10.09 8.21
45 32.65 26.7 21.5 17.04 13.17 9.78 18.28 17.08 15.72 14.17 12.42 10.45
50 31.15 25.45 20.55 16.29 12.57 19.59 18.21 16.73 15.01 13.01
55 29.65 24.3 19.62 15.56 20.65 19.32 17.75 15.86
S6F-30.2 30 44.45 36.25 29.2 23.2 18.06 13.65 9.82 17.41 16.43 15.32 14.06 12.63 11.02 9.2
35 42.7 34.8 28.05 22.25 17.28 12.98 9.22 18.91 17.74 16.44 14.99 13.37 11.56 9.56
40 40.9 33.35 26.9 21.3 16.51 12.22 8.63 20.4 19.09 17.61 15.96 14.12 12.07 9.82
45 39.1 31.9 25.7 20.4 15.76 11.7 21.87 20.44 18.8 16.95 14.85 12.5
50 37.25 30.4 24.6 19.49 15.04 23.31 21.79 20.02 17.96 15.57
55 35.45 29.05 23.5 18.61 24.71 23.11 21.23 18.97
Compressor type Cond temp (°C) Cooling capacity Qo(KW) Power consumption Pe(kW)
Evaporating temperatue(°C )
-25 -30 -35 -40 -45 -50 -55 -60 -65 -70 -25 -30 -35 -40 -45 -50 -55 -60 -65 -70
S4G-12.2 30 19.49 16.83 14.28 11.86 9.65 7.68 5.98 4.57 3.41 2.49 9.74 9.06 8.35 7.61 6.85 6.1 5.35 4.62 3.92 3.27
35 19.26 16.57 14 11.6 9.43 7.51 5.87 4.48 3.34 2.42 10.39 9.64 8.86 8.05 7.22 6.4 5.59 4.81 4.06 3.37
40 18.92 16.23 13.69 11.34 9.22 7.36 5.76 4.4 3.25 11.05 10.23 9.37 8.49 7.6 6.72 5.85 5.01 4.22
45 18.52 15.86 13.37 11.08 9.03 7.23 5.66 4.29 11.7 10.82 9.9 8.96 8 7.05 6.12 5.22
50 18.07 15.48 13.06 10.85 8.86 7.1 5.54 12.35 11.4 10.44 9.44 8.42 7.41 6.41
55 17.61 15.1 12.77 10.64 8.71 6.97 12.9 11.98 10.99 9.94 8.87 7.78
S6J-16.2 30 27.6 23.75 20.15 16.81 13.76 11.03 8.66 6.65 4.99 3.66 14.13 12.93 11.76 10.61 9.49 8.41 7.37 6.4 5.49 4.65
35 27.1 23.3 19.74 16.46 13.46 10.8 8.49 6.53 4.9 3.58 15.05 13.74 12.48 12.24 10.06 8.91 7.82 6.78 5.8 4.89
40 26.5 22.8 19.34 16.11 13.18 10.58 8.33 6.41 4.79 16 14.58 13.21 11.9 10.63 9.42 8.26 7.16 6.1
45 26 22.35 18.92 15.77 12.92 10.38 8.19 6.27 16.94 15.42 13.96 12.56 11.21 9.93 8.69 7.51
50 25.5 21.9 18.52 15.44 12.67 10.21 8.02 17.83 16.23 14.68 13.2 11.78 10.41 9.1
55 21.5 18.16 15.15 12.45 10.02 16.97 15.37 13.82 12.33 10.87
S6H-20.2 30 31.9 27.45 23.3 19.44 15.91 12.76 10.02 7.69 5.77 4.23 16.43 15.02 13.64 12.3 11 9.76 8.57 7.44 6.4 5.4
35 31.3 26.95 22.85 19.03 15.56 12.48 9.8 7.56 5.67 4.14 17.47 15.95 14.47 13.04 11.66 10.33 9.07 7.86 6.72 5.66
40 30.6 26.35 22.35 18.61 15.23 12.24 9.64 7.42 5.54 18.53 16.9 15.32 13.79 12.33 10.92 9.57 8.29 7.07
45 29.9 25.75 21.85 18.2 14.92 12.01 9.47 7.26 19.6 17.85 16.17 14.55 12.99 11.5 10.07 8.7
50 29.35 25.2 21.35 17.81 14.63 11.8 9.28 20.63 18.79 17.01 15.3 13.65 12.07 10.55
55 24.7 20.9 17.45 14.36 11.57 19.69 17.83 16.03 14.29 12.61
S6G-25.2 30 36.2 31.3 26.6 22.25 18.22 14.62 11.48 8.83 6.63 4.87 18.84 17.27 15.71 14.16 12.65 11.19 9.8 8.49 7.29 6.2
35 35.6 30.7 26.1 21.75 17.81 14.3 11.25 8.66 6.51 4.76 20.02 18.32 16.64 15 13.41 11.87 10.41 9.02 7.72 6.51
40 34.9 30.1 25.5 21.3 17.42 14 11.04 8.5 6.35 21.27 19.4 17.6 15.85 14.16 12.55 11 9.52 8.13
45 34.1 29.4 24.95 20.8 17.06 13.74 10.84 8.31 22.52 20.5 18.56 16.7 14.92 13.2 11.56 10
50 33.45 28.75 24.35 20.35 16.72 13.49 10.62 23.71 21.58 19.5 17.56 15.67 13.85 12.1
55 32.9 28.15 23.8 19.92 16.41 13.23 24.78 22.61 20.49 18.42 16.42 14.47
S6F-30.2 30 43.4 37.4 31.75 26.5 21.7 17.42 13.69 10.54 7.92 5.8 22.53 20.65 18.78 16.94 15.15 13.42 11.77 10.2 8.74 7.4
35 42.5 36.6 31.05 25.9 21.2 17.03 13.42 10.37 7.78 5.68 23.85 21.86 19.89 17.94 16.04 14.21 12.45 10.78 9.23 7.8
40 41.5 35.7 30.3 25.3 20.7 16.68 13.17 10.15 7.59 25.2 23.1 21.01 18.96 16.95 15 13.14 11.37 9.72
45 40.45 34.8 29.55 24.7 20.3 16.36 12.93 9.92 26.59 24.37 22.16 19.98 17.86 15.8 13.83 11.96
50 39.5 34 28.85 24.1 19.87 16.06 12.65 28.07 25.69 23.33 21.01 18.75 16.57 14.49
55 38.8 33.25 28.2 23.6 19.4 15.74 29.64 27.06 24.51 22.03 19.63 17.32

Compressor type Cond temp (°C) Cooling capacity Qo(KW) Power consumption Pe(kW)
Evaporating temperatue(°C )
-25 -30 -35 -40 -45 -50 -55 -60 -65 -70 -25 -30 -35 -40 -45 -50 -55 -60 -65 -70
S4G-12.2 30 15.86 13.27 10.91 8.8 6.96 5.39 4.09 3.05 2.22 1.59 9.02 8.28 7.55 6.83 6.11 5.4 4.69 3.98 3.27 2.57
35 15.06 12.54 10.27 8.26 6.52 5.05 3.84 2.86 2.09 1.48 9.45 8.66 7.88 7.11 6.34 5.57 4.82 4.07 3.32 2.59
40 14.16 11.76 9.61 7.71 6.09 4.72 3.57 2.68 1.93 9.87 9.04 8.21 7.38 6.56 5.75 4.95 4.15 3.37
45 13.2 10.94 8.92 7.17 5.66 4.4 3.35 2.47 10.29 9.42 8.54 7.67 6.8 5.94 5.08 4.25
50 12.18 10.08 8.23 6.62 5.24 4.07 3.08 10.72 9.81 8.89 7.97 7.05 6.14 5.24
55 11.1 9.2 7.52 6.06 4.8 3.72 11.15 10.21 9.25 8.3 7.34 6.38
S6J-16.2 30 23.95 19.94 16.35 13.19 10.44 8.1 6.15 4.57 3.33 2.37 13.07 11.7 10.43 9.25 8.17 7.18 6.27 5.44 4.69 4
35 22.65 18.79 15.38 12.38 9.78 7.57 5.77 4.3 3.12 2.21 13.63 12.22 10.91 9.68 8.54 7.48 6.5 5.6 4.78 4.04
40 21.25 17.6 14.28 11.56 9.13 7.09 5.4 4.02 2.9 14.17 12.77 11.42 10.15 8.95 7.81 6.76 5.78 4.89
45 19.76 16.36 13.36 10.74 8.49 6.6 5.02 3.72 14.73 13.33 11.96 10.64 9.38 8.18 7.04 5.98
50 18.23 15.09 12.32 9.91 7.85 6.1 4.63 15.3 13.9 12.51 11.15 9.83 8.56 7.34
55 16.63 13.78 11.26 9.07 7.19 5.58 15.87 14.47 13.07 11.67 10.3 8.95
S6H-20.2 30 27.7 23.1 18.96 15.3 12.11 9.38 7.13 5.3 3.85 2.74 15.36 13.69 12.15 10.73 9.44 8.27 7.23 6.32 5.53 4.86
35 26.2 21.8 17.84 14.36 11.34 8.79 6.69 4.98 3.62 2.56 16.04 14.33 12.73 11.26 9.9 8.67 7.56 6.57 5.71 4.97
40 24.6 20.4 16.68 13.4 10.59 8.22 6.26 4.66 3.36 16.7 14.96 13.32 11.79 10.38 9.08 7.89 6.82 5.87
45 22.9 18.97 15.49 12.45 9.84 7.65 5.82 4.31 17.35 15.58 13.91 12.34 10.88 9.51 8.24 7.08
50 21.1 17.49 14.28 11.49 9.1 7.07 5.37 18 16.21 14.52 12.92 11.41 9.98 8.63
55 19.25 15.95 13.04 10.51 8.33 6.47 18.66 16.85 15.14 13.52 11.98 10.5
S6G-25.2 30 31.8 26.5 21.75 17.57 13.9 10.78 8.18 6.09 4.43 3.15 17.92 15.88 14.03 12.35 10.84 9.49 8.3 7.25 6.34 5.56
35 30.1 25 20.5 16.48 13.02 10.1 7.68 5.72 4.16 2.94 18.51 16.49 14.63 12.91 11.35 9.93 8.66 7.54 6.56 5.72
40 28.25 23.4 19.14 15.39 12.15 9.43 7.18 5.34 3.86 19.12 17.14 15.27 13.52 11.89 10.4 9.04 7.83 6.77
45 26.3 21.8 17.78 14.29 11.3 8.78 6.68 4.95 19.74 17.81 15.95 14.16 12.47 10.89 9.43 8.12
50 24.3 20.05 16.39 13.19 10.44 8.12 6.16 20.4 18.51 16.63 14.81 13.05 11.38 9.82
55 22.1 18.31 14.97 12.06 9.57 7.42 21.11 19.21 17.32 15.45 13.63 11.87
S6F-30.2 30 38.05 31.7 26.05 21 16.62 12.88 9.79 7.28 5.3 3.76 21.26 18.81 16.61 14.64 12.9 11.37 10.02 8.86 7.85 7
35 36 29.95 24.5 19.71 15.57 12.07 9.18 6.84 4.98 3.51 22.11 19.66 17.41 15.37 13.53 11.88 10.42 9.13 8.02 7.08
40 33.8 28 22.9 18.39 14.53 11.28 8.59 6.4 4.62 22.95 20.53 18.26 16.15 14.2 12.42 10.82 9.41 8.18
45 31.45 26.05 21.25 17.08 13.51 10.5 8 5.92 23.82 21.42 19.12 16.94 14.89 13 11.26 9.71
50 28.95 24 19.59 15.77 12.49 9.71 7.37 24.72 22.31 19.98 17.74 15.61 13.61 11.76
55 26.4 21.9 17.89 14.43 11.44 8.88 25.67 23.19 20.8 18.52 16.34 14.27
