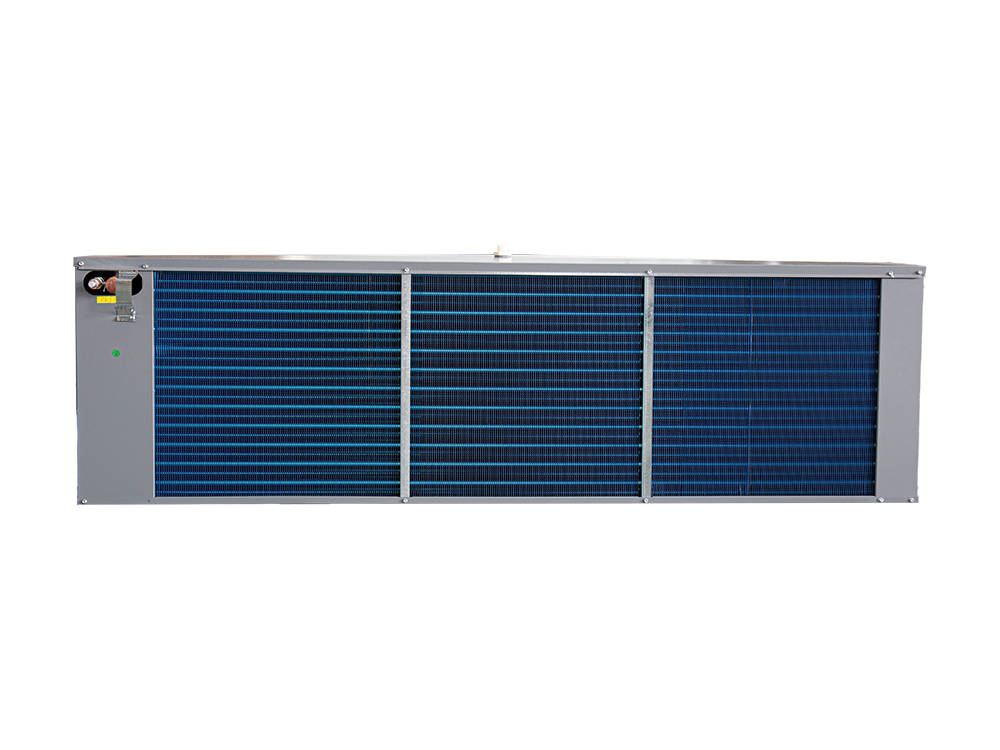

DJ three-motor Electric defrosting air cooler

The DJ three-motor electric defrost air cooler features a staggered design of copper tubes and aluminum fins, which are tightly fitted through mechanical expansion to ensure efficient heat exchange. This system offers fast and effective defrosting, while an electric defrost function ensures stable operation even in low-temperature environments. The DJ series is suitable for deep freezing needs below -25°C. Equipped with a three-phase motor with multiple speed options and an IP54 protection rating, it is suitable for both industrial and commercial environments. Its overall design emphasizes energy conservation and environmental protection.

Inquiry
  • DJ three-motor Electric defrosting air cooler
  • DJ three-motor Electric defrosting air cooler
  • DJ three-motor Electric defrosting air cooler
  • DJ three-motor Electric defrosting air cooler
  • DJ three-motor Electric defrosting air cooler
  • DJ three-motor Electric defrosting air cooler
Model Refrigerating
capacity
Nominal area  Volume  Inlet/Outlet tube of refigerant Fan parameters Electric Defrost
 NumberF  Fan diameter   Voltage Power(W) Air volume  Range Defrosting power of fins Power of defrosting pan
W L mm N mm V W m³/h m W W
DJ-11.6/70 11600 70 17.3 Φ25/Φ40 3 500 380 3×414 18000 15 8000 4000
DJ-14.3/85 14300 85 19.6 Φ25/Φ40 3 500 380 3×414 18000 15 8000 4000

Model Length Width Height Position size of the mounting hole Drainage to
take over the
outer diameter
Space
L B H D E El E2 E3 F W
Dl-11.6/70 2420 580 710 470 2025 665 665 / 157 GI" 450
DJ-14.3/85 2720 580 7IO 470 2425 800 800 / 107 GI" 500
