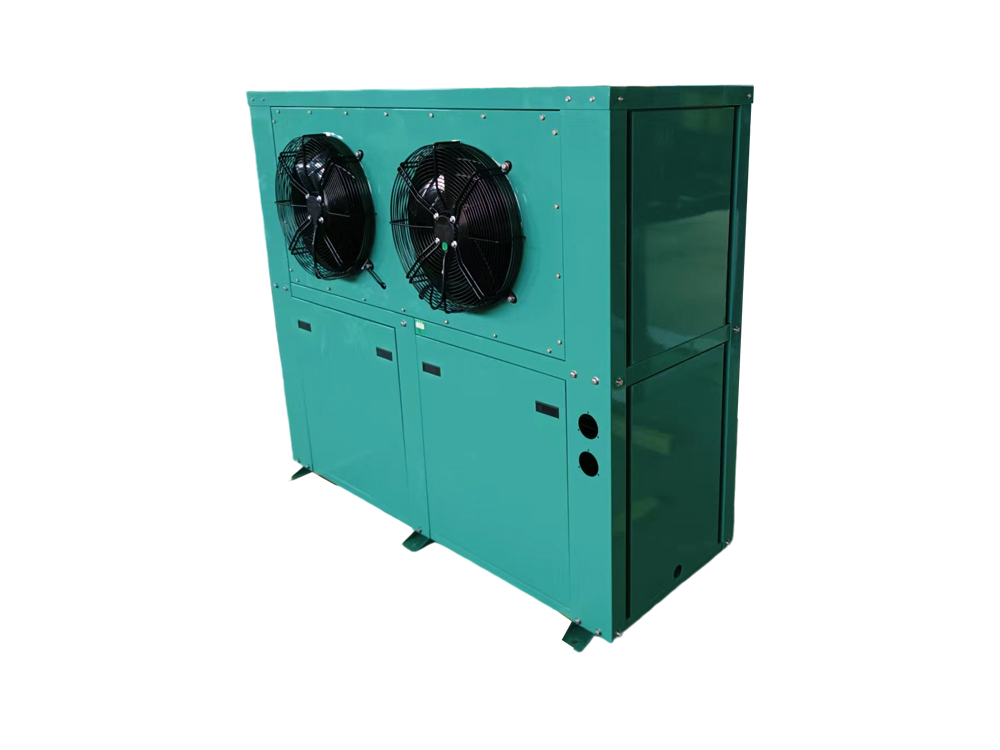

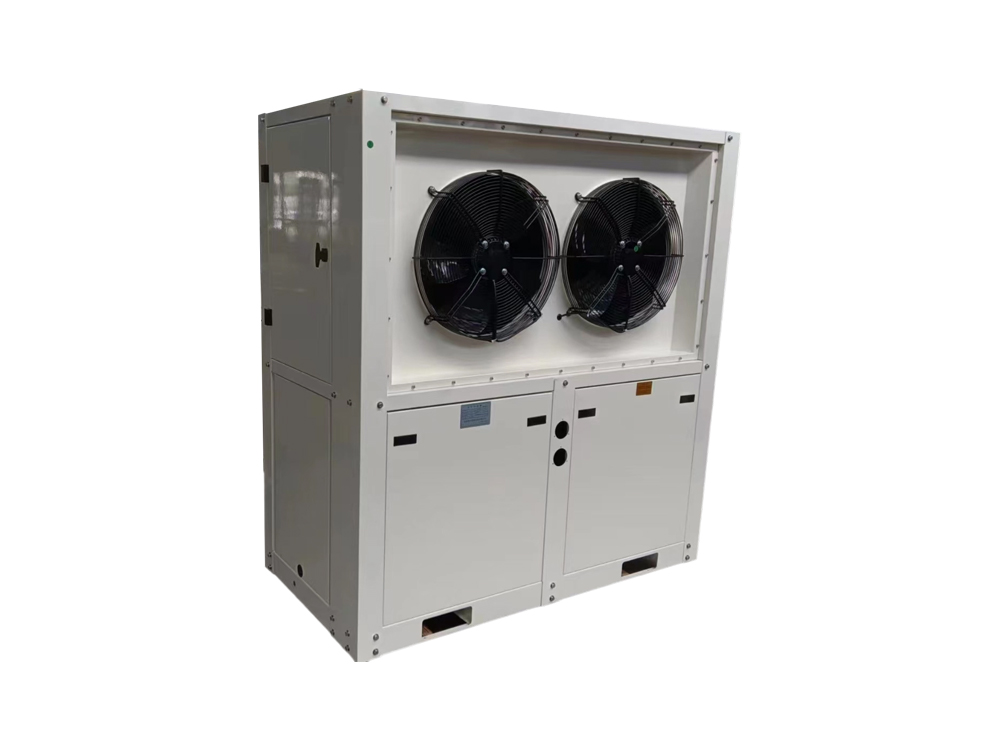

L-shaped integrated condensing unit with upper and lower electrical control boxes

The L-shaped, integrated condensing unit with upper and lower electrical control boxes features a compact design, integrating core components such as the compressor, condenser, and electronic control system within an L-shaped frame. The upper level primarily houses the control box and some electrical components, while the lower level houses the compressor and condensing heat exchanger module. This structure optimizes space and heat management.

Equipped with fully enclosed or semi-hermetic compressors, the units support air-cooled or water-cooled condensing methods, making them suitable for medium and low-temperature cooling applications. The electronic control system integrates common protection features, including high and low voltage protection, motor overload protection, and phase loss protection, and includes a remote monitoring interface. The housing is typically constructed of galvanized steel or stainless steel, providing corrosion resistance and mechanical protection.

This unit is suitable for cold storage, food refrigeration, industrial refrigeration, and other applications, and operates stably in ambient temperatures ranging from -18°C to 5°C.
